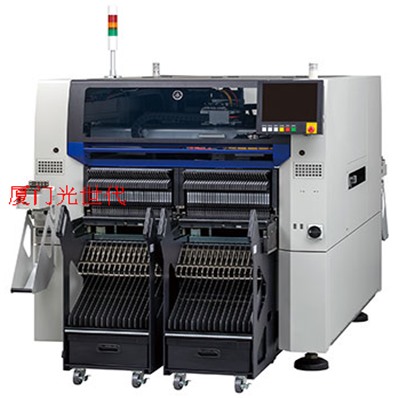

YRM贴片机
  • YRM贴片机

YRM贴片机

所属类别:YAMAHA贴片机

产品规格:

详细内容



· Fusion with Σ technology achieves overwhelming productivity

· Broad-ranging production capacity thanks to the 1-head solution

· Standard features that maintain component mounting quality at a peak level!

· Ensures high-efficiency production with a full range of functions!

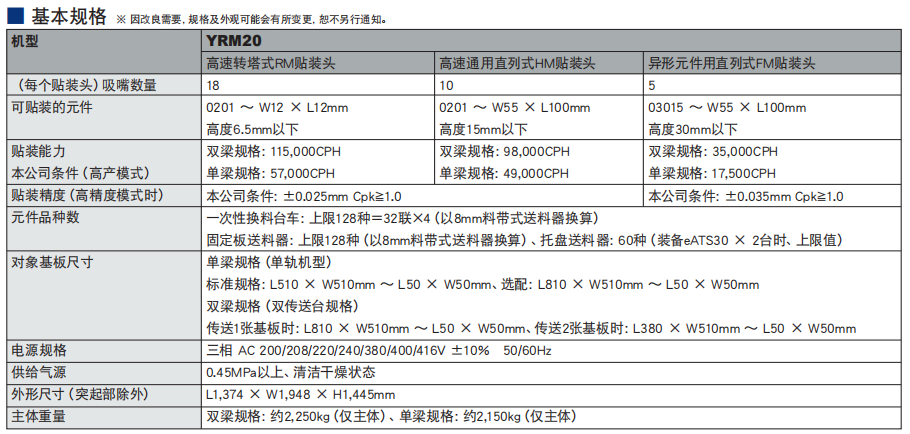

Model

YRM20

High-speed general-purpose rotary RM head

IN-LINE HM head

Nozzles (per 1 head unit)

18

10

Applicable components

0201 to W12 x L12mm, Height 6.5mm or less

0201 to W55 x L100mm, Height 15mm or less

Mounting capability
(during high-production mode)

115,000CPH

98,000CPH

Mounting accuracy
(during high-precision mode)

During use under in-house optimal conditions : ±0.025mm Cpk≧1.0

Number of component Types

Feeder carriage exchange : Max. 128 types = 32 feeders x 4 (conversion for 8mm tape feeder)

PCB dimensions

Dual-stage specifications
1PCB conveyance : L810 x W510mm to L50 x W50mm
2PCB conveyance : L380 x W510mm to L50 x W50mm

Power supply

3-Phase AC 200/208/220/240/380/400/416V +/-10% 50/60Hz

Air supply source

0.45MPa or more, in clean, dry state

External dimension
(excluding projections)

L1374 x W1948 x H1445mm

Weight

Approx. 2,250kg (Main unit only)

Specifications and appearance are subject to change without prior notice.
